Description

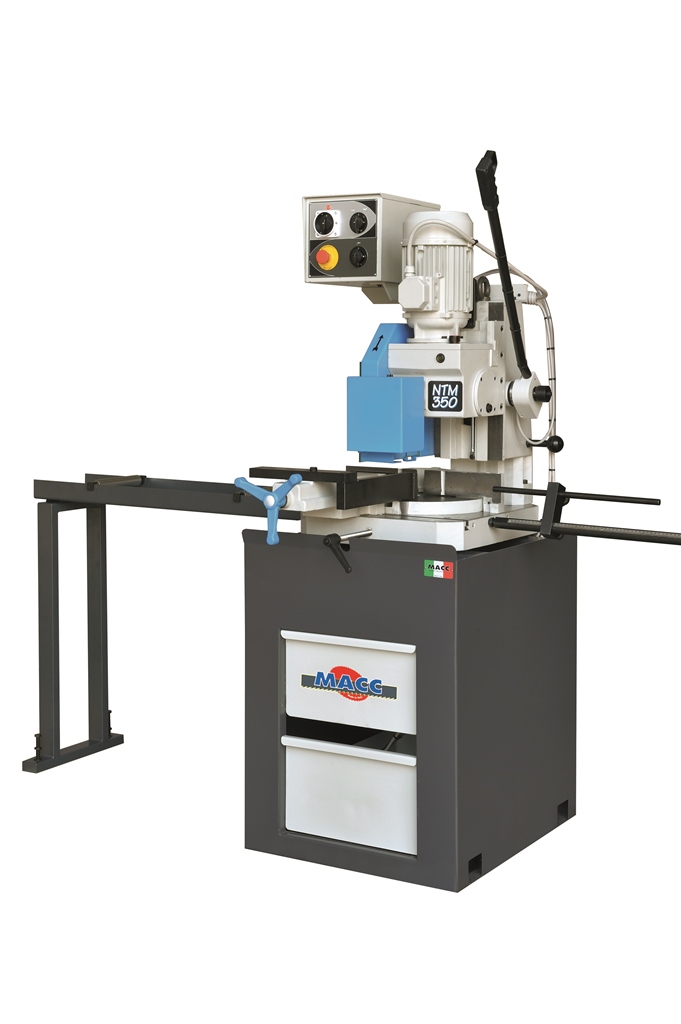

TECHNICAL DATA AND STANDARD ACCESSORIES
- Movable head 45° right and 60° left
- Head rotation stops 45° – 0° – 45° – 60°
- Vice complete with anti-burr device
- Motor pump for blade lubrification
- Shave breaker to keep the blade cleaned
- Adjustable stops for head vertical stroke
- 1 m long bar stop
- 1 m long bar support
- Service tools
- Instruction manual and exploded view of spare parts list
- Steel pedestal
- 24 V low voltage installation with hold-to-run head control knob
- Overall dimensions: 1050 mm x 1000 mm x 1850 mm
ACCESSORIES ON REQUEST
- Pedal controlled pneumatic vice
- Electric motor 1,5 – 2,2 kW / 18 – 36 rpm
- Bar support 2 – 4 – 6 m
